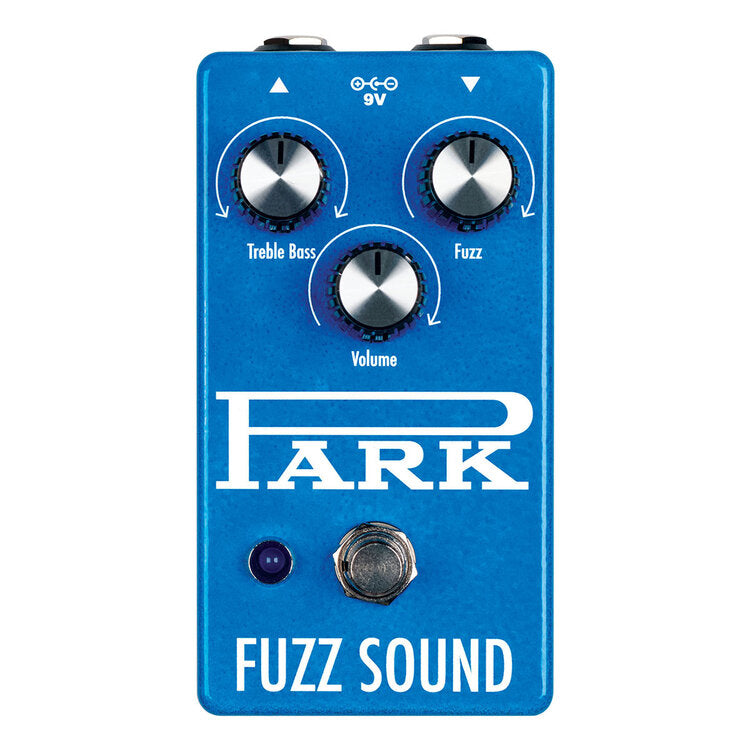

fuzz pedal germanium Park Fuzz Sound EarthQuaker Devices Pedal

fuzz pedal germanium Park Fuzz Sound EarthQuaker Devices PedalPark Amplifiers and EarthQuaker Devices have teamed up to bring you a faithful recreation of the original Park Fuzz Sound! While it retains the original sounds, there are several modern upgrades to improve performance, reduce extraneous background noise and add versatility: Metal film resistors and caps for quieter performance NOS matched germanium transistors for consistent, reliable tones Wider fuzz range, more than twice the original Smaller

Park Amplifiers and EarthQuaker Devices have teamed up to bring you a faithful recreation of the original Park Fuzz Sound! While it retains the original sounds, there are several modern upgrades to improve performance, reduce extraneous background noise and add versatility:

• Metal film resistors and caps for quieter performance
• NOS matched germanium transistors for consistent, reliable tones
• Wider fuzz range, more than twice the original
• Smaller footprint, true bypass switching with LED indication and power supply compatible

1. Volume: This is the level control, louder to the right, quieter to the left.
2. Treble/Bass: This is the tone control, thicker tones to the right, brighter to the left.
3. Fuzz: This is the gain control, more fuzz to the right, less to the left.

Power

This device can be powered by a standard 9 volt DC power supply intended for musical instruments with a negative center 2.1mm barrel. Even though this pedal is a germanium fuzz, it will play nice on a daisy chain due to its internal voltage regulation. DO NOT RUN AT HIGHER VOLTAGES!

Switching

This device is true bypass and uses electronic relay-based switching. Audio will not pass without power.

• Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
• Current Draw: 3 mA
• Input Impedance: 100 kΩ
• Output Impedance: <1 kΩ
